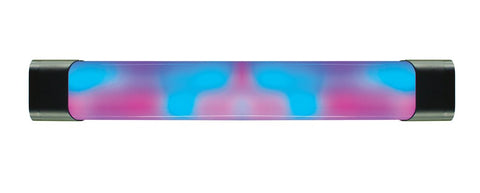

Quasar Science RR100 - 4FT Double RGBXSKU: 12756
The new RR Linear LED Lights are elegant, compact and filled with incredible features. This sleek new design advances Quasar’s tubular form factor by doubling the width but retaining the low-profile shape that gets the RR into all the same tight spaces as legacy Quasar lights.
The RR is offered in two lengths: RR100 at 46 in/117 cm and RR50 at 23 in/59 cm.
Affectionately dubbed the “Double Rainbow,” the RR has two rows of pixels expanding the animation and FX capabilities into a whole new realm, ideal for process car work and special lighting effects. The RR50 packs in 24 pixels, and the RR100 features 48 separate pixels. All with pixel selection to give the user maximum control.
The RR features onboard universal AC power 100-240VAC and auxiliary DC input from 12-24 volts. Color always comes first at Quasar Science, so our RGBx technology enables our lights to score an SSI rating of between 76 (daylight), and 91(Tungsten), and a CRI/TLCI score of 95+. Dimming is just as important as maintaining the brightness Quasar has always lived up to. Improved low end dimming gets these lights closer to a true 1% than ever before.
We have held onto our wireless DMX through LumenRadio, while adding sACN, Artnet, and the ability to be controlled wirelessly through CRMX, Wifi, and Bluetooth, which gives you the broadest choices for data connectivity.
The Swaptics™ Interchangeable Lens System
Also available as an optional accessory is our new Swaptics™ Interchangeable Lens System. The slim diffuser (included with the lights) and two swappable lenses, the Light Barrel™ large diffuser and the Light Magnifier™ projection lens, are available for purchase.
We have upped the caliber for rigging with the RAIL™ Mounting System, giving you the most versatility of any rigging system yet. In collaboration with Key Grip and Hardware Designer, Chuck Smallwood of G-Force Grips, the RR lights include the QS Slider to mount anywhere along the back of the light and the QS Baby Pin to attach onto your slider. (See below for more info.)
We know how important efficiency is on set, so we have designed an onboard rigging system.
Straight out of the box, you will be able to rig your Quasars. No more buying additional clamps or metal clips. Both the RR and R2 will come standard with a mounting rail down the back of the light, lined with 3/8-16 and 1/4-20 mounting points.
Two attachments will come with the purchase of each light. The first is the QS Slider, which allows you to slide the rigging point anywhere along the plane of the linear light. The second is the QS Baby Pin to mount to the QS Slider or directly to the rail itself.
We are offering two additional accessories for the RAIL™ Mounting System that are sold separately. The QS Rotator Block allows you rotate the light 360 degrees on any mounted 5/8” or 3/8” pin or rod. We are also offering an attachment to rig your V-Mount batteries onto the light for any run and gun type filming. Keeping an external battery enables easy battery changes. Once you experience the ease of rigging and positioning with the RAIL™ mounting system, you’ll never want to go back.
- RGBX 2000-6000K Crossfade White Light with RGB Color Mixing
- QS Pixel Control
- Manual Interface with OLED Screen
- Mounting Rail with 3/8-16 & 1/4-20 Threaded
- Output Enabled Button
- Universal AC Power 100v-240v
- Auxiliary DC Input 10-26v
- Improved Low End Dimming
- Finer Dimming Control
- Integrated Power Button
- Lead / Follow Mode
- Expanded Onboard Effects
- Rig Mode
Length and Wattage:
- RR50 - 23in/59cm - 24 Pixels
- RR100 - 46in/117cm - 48 Pixels
Power Connect & Voltage:
- Self Ballasted AC range 100VAC to 240VAC via Neutrik True1 connect.
- DC range 10VDC to 26VDC via 5.5 x 2.1mm Locking Barrel connect.
- OLED screen with digital interface
- Wired Control via Cat5/6
- Wireless DMX Control by Lumen Radio CRMX Wireless + Bluetooth
- Robust Industry Standard
- Easy Pairing
- Compatible with W-DMX Transmitters
- Artnet over Wifi
- Lead/Follow Mode for operation from one tube to control multiple tubes
Included with every lamp:
- 1 - QS Slider
- 1 - QS Rotator Block
- 1 - Set of Q Boot-RR (1 Power End, 1 Control End)
- 1 - 8' True 1 Power Connector Cable
- 1 - Quick Start Manual
- 1 - Shortcut Card
